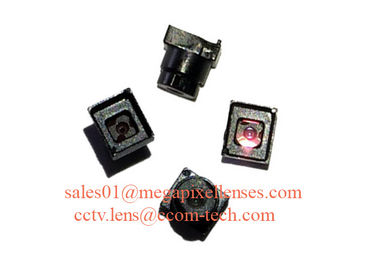

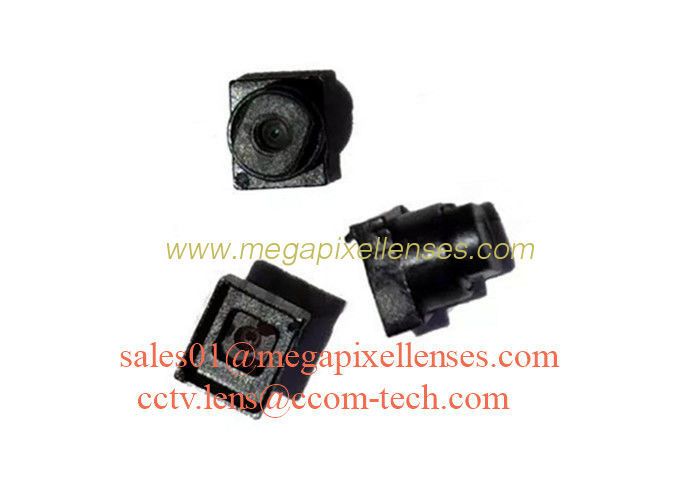

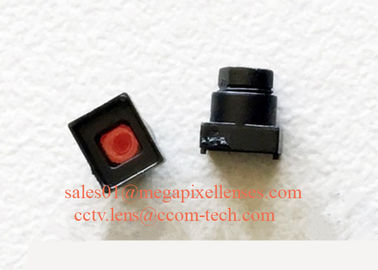

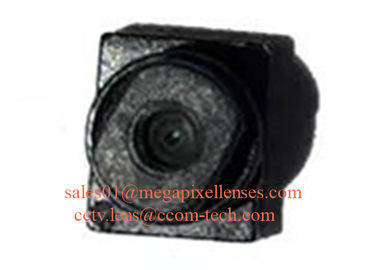

1/9" 1/10" 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens

1/9" 1/10" 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens

    • 1/9" 1/10" 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
    • 1/9" 1/10" 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
    • 1/9" 1/10" 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
    • 1/9" 1/10" 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens
  • 1/9" 1/10" 1.08mm F4.0 M2.6xP0.25 micro endoscope lens for OV6930/GC0339, medical video lens

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 110108

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M2.6x0.25 Mount Endoscope Lens Resolution: VGA
    F.O.V(D*H*V): GC0339: 100°*74°*54°; OV6930: 78.5°*56°*55° Lens Constructure: 2P+IR

    1/9" 1/10" 1.08mm F4.0 M2.6xP0.25 micro medical lens endoscope lens for OV6930/GC0339, medical video equipment lens for GC0339 CSP, OV6930 lens


    This lens can be used on pipes, sewers, industrial inspection, endoscopes and other instruments.



    Model 110108
    IMAGE FORMAT 1/9" & 1/10"
    SENSOR GC0339 CSP / OV6930
    SENSOR SIZE 1.6mm(H)*1.2mm(V)*2.0mm(D)
    FOCAL LENGTH 1.08mm (±5%)
    MAX IMAGE CIRCLE Φ3.1mm
    FOCUSING RANGE 3-25mm
    F.O.V(D*H*V) GC0339: 100°*74°*54°; OV6930: 78.5°*56°*55°
    APERTURE F4.0 (±5%)
    OPTICAL DISTORTION <-39%
    MOUNT M2.6XP0.25
    B.F.L. 1.385mm
    T.T.L. 3.34±0.2mm
    LENS CONSTRUCTURE 2P+IR filter



    Tips: we also have medical lenses for 1/13" and 1/18" sensors. For more info, please feel free to contact us by email cctv.lens@ccom-tech; sales01@megapixellenses.com.
