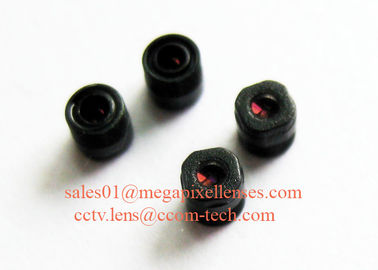

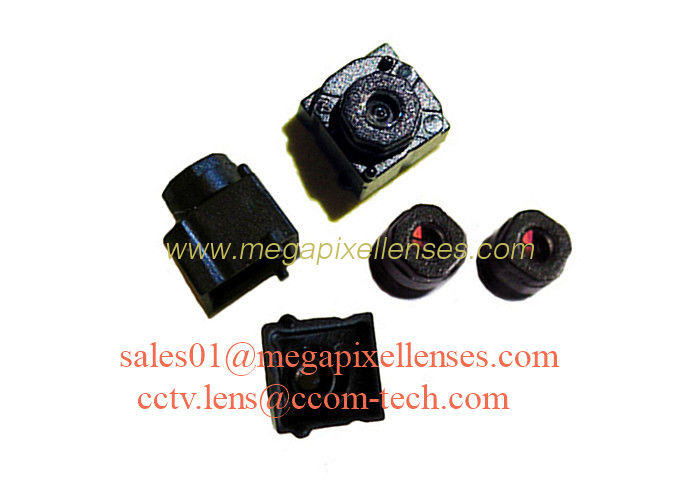

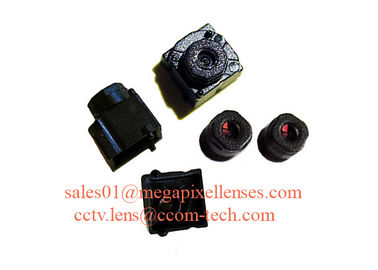

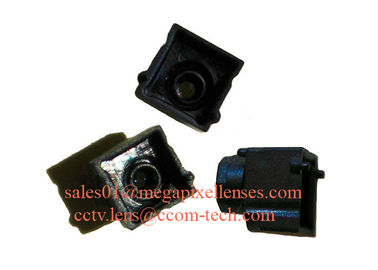

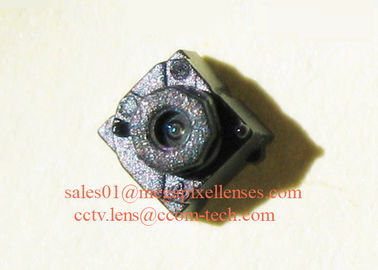

1/18" 0.68mm F3.0 M2.1xP0.15 Mount medical endoscope lens for OV6920/OV6922 sensor

1/18" 0.68mm F3.0 M2.1xP0.15 Mount medical endoscope lens for OV6920/OV6922 sensor

    • 1/18" 0.68mm F3.0 M2.1xP0.15 Mount medical endoscope lens for OV6920/OV6922 sensor
    • 1/18" 0.68mm F3.0 M2.1xP0.15 Mount medical endoscope lens for OV6920/OV6922 sensor
    • 1/18" 0.68mm F3.0 M2.1xP0.15 Mount medical endoscope lens for OV6920/OV6922 sensor
    • 1/18" 0.68mm F3.0 M2.1xP0.15 Mount medical endoscope lens for OV6920/OV6922 sensor
  • 1/18" 0.68mm F3.0 M2.1xP0.15 Mount medical endoscope lens for OV6920/OV6922 sensor

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 118068

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Detailed Product Description
    Video Lens: M2.1x0.15 Mount Endoscope Lens Resolution: VGA
    F.O.V(D*H*V): 90°*68°*50° Lens Constructure: 2P

    1/18" 0.68mm F3.0 M2.1xP0.15 micro medical endoscope lens for OV6920/OV6922, medical video equipment lens


    This lens can be used on pipes, sewers, industrial inspection, endoscopes and other instruments.



    Model: 118068
    IMAGE FORMAT: 1/18"
    SENSOR: OV6920(CSP)
    SENSOR SIZE: 0.8mm(H)*0.6mm(V)*1.0mm(D)
    FOCAL LENGTH: 0.68mm (±5%)
    MAX IMAGE CIRCLE: Φ1.2mm
    F.O.V: 90°(D)*68°(H)*50°(V)
    RESOLUTION: VGA
    DISTORTION: <10%
    APERTURE: F3.0 (±5%)
    MOUNT: M2.1XP0.15
    B.F.L.: 1.121mm
    M.O.D.: 0~50mm
    T.T.L.: 2.9mm±.01mm(0.4mm cover glass)
    LENS CONSTRUCTURE: 2P



    Tips: we also have medical lenses for 1/9", 1/10" and 1/13" sensors. For more info, please feel free to contact us by email cctv.lens@ccom-tech; sales01@megapixellenses.com
