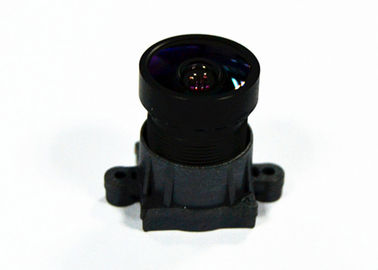

1/2.9" 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount 134degree wide angle board lens for IMX322/OV4689/AR0330

1/2.9" 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount 134degree wide angle board lens for IMX322/OV4689/AR0330

    • 1/2.9" 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount 134degree wide angle board lens for IMX322/OV4689/AR0330
    • 1/2.9" 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount 134degree wide angle board lens for IMX322/OV4689/AR0330
  • 1/2.9" 2.8mm F2.2/F2.0 5Megapixel M12x0.5 mount 134degree wide angle board lens for IMX322/OV4689/AR0330

    Product Details:

    Place of Origin: China
    Brand Name: CCOM LENS
    Model Number: 129028MP 129028MPF

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Packaging Details: Standard
    Delivery Time: 2-7 work days
    Payment Terms: T/T, Western Union, Moneygram, Paypal
    Supply Ability: Samples available
    Contact Now
    Detailed Product Description
    Video Lens: M12 Mount Board Lens Resolution: Megapixel
    FOV(D*H*V): IMX322: 134.2°*114°*62.7°, OV4689: 133.2°*114°*64° Constructure: 6G/6G+IR

    1/2.9" 1/3" 2.8mm F2.2 5Megapixel M12x0.5 mount board lens for IMX322/OV4689/AR0330, 2.8mm 134degree wide angle cctv lens



    MODEL 129028MPF

    SENSOR FORMAT 1/2.9" & 1/3"

    SENSOR IMX322/OV4689/AR0330
    MAX IMAGE CIRCLE Φ6.5mm
    FOCAL LENGTH(EFL) 2.8mm
    F.O.V. (D*H*V) IMX322: 134.2°*114°*62.7°, OV4689: 133.2°*114°*64°, AR0330: 131°*107°*70°

    RESOLUTION 5MP
    APERTURE F2.2/F2.0
    OPTICAL DISTORTION <-39.2%
    MOUNT M12X0.5
    B.F.L.(O) 6.30mm
    B.F.L.(M) 5.18mm
    T.T.L. 21.67mm
    LENS CONSTRUCTURE 6G+IR

    DIMENSION(mm) Φ14x16.49
    RELATIVE ILLUMINATION IMX322: >60%; OV4689: >64%; AR0330: >64.3%

    IR COATING 640±8NM AT: 50%
    CHIEF RAT ANGLE IMX322: <20.87
    °; OV4689: <20.75°; AR0330: <20.48°



    Tips:
    - ***MP: without IR-Cut filter
    - ***MPF: with IR-Cut filter
    - 650nm/850nm/940nm IR filter optional

    - For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
