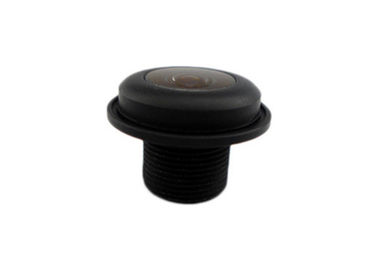

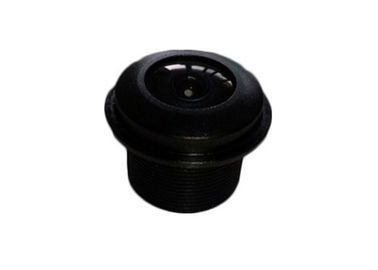

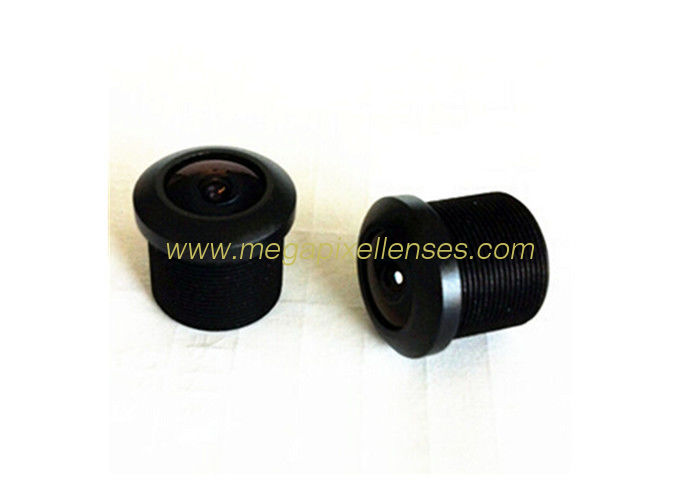

1/4" 1.7mm F2.0 M12x0.5 mount 170degree wide-angle lens for vehicle camera, automotive camera lens
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | CCOM LENS |
| Model Number: | 14017-M12 14017F-M12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union, Moneygram, Paypal |
| Supply Ability: | Samples available |
Detailed Product Description
| Video Lens: | M12 Mount Board Lens | Resolution: | VGA/0.3MP |
|---|---|---|---|
| F.O.V.(D): | 170° | Lens Constructure: | 4G/4G+IR |
1/4" 1.7mm F2.0 M12x0.5 or M8x0.5 Mount 170degree Wide-Angle Automotive Camera Lens, 1.7mm Mini Fisheye Lens for 180º/360º panoramic cameras
MODEL 14017-M12(A)
IMAGE FORMAT 1/4"
FOCAL LENGTH(mm) 1.7
FOV(D) 170°
RESOLUTION 0.3MP/VGA
APERTURE 2.0
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 3.25 (in air)
F.B.L.(mm) 2.90 (in air)
T.T.L.(mm) 15.87
DIMENSION(mm) Φ14x13
MODEL 14017-M12(B)
IMAGE FORMAT 1/4"
FOCAL LENGTH(mm) 1.7
FOV(D) 170°
RESOLUTION 0.3MP/VGA
APERTURE 2.0
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 3.25
F.B.L.(mm) 1.90 (in air)
T.T.L.(mm) 14.87
DIMENSION(mm) Φ16x13
MODEL 14017-M8
IMAGE FORMAT 1/4"
FOCAL LENGTH(mm) 1.7
FOV(D) 170°
RESOLUTION 0.3MP/VGA
APERTURE 2.0
MOUNT(mm) M8x0.5 (M8x0.35 optional)
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 3.25
F.B.L.(mm) 1.9 (in air)
T.T.L.(mm) 13.5
DIMENSION(mm) Φ14x11.7
Tips:
- M12/M8 mount option
- 650nm/850nm/940nm IR filter optional. F: with IR filter
- Waterproof is optional.
- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
