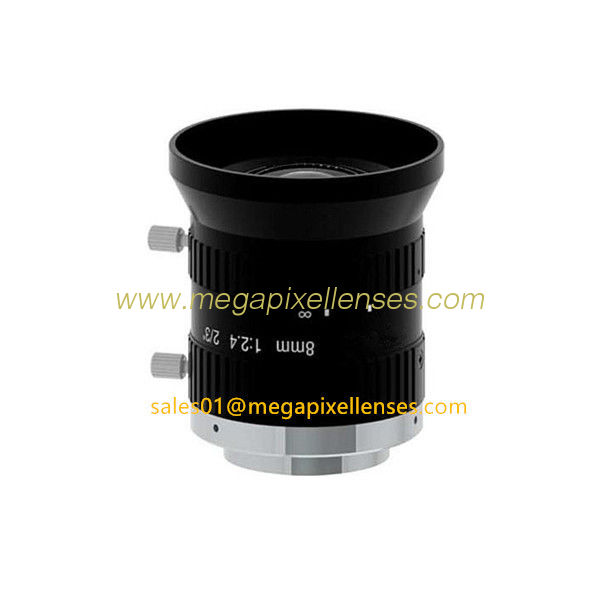

2/3" 8mm/12mm F2.4 5MP Manual IRIS C Mount Industrial FA Lens for 2/3", 1/1.8", 1/2", 1/2.9"

2/3" 8mm/12mm F2.4 5MP Manual IRIS C Mount Industrial FA Lens for 2/3", 1/1.8", 1/2", 1/2.9"

2/3" 8mm/12mm F2.4 5MP Manual IRIS C Mount Industrial FA Lens for 2/3", 1/1.8", 1/2", 1/2.9"

Product Details:

Place of Origin: China
Brand Name: CCOM LENS
Model Number: 230824MP-FA 231224MP-FA

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union, Moneygram, Paypal
Supply Ability: Samples available
Contact Now
Detailed Product Description
Industrial Lens: Fixed Focal C Mount FA Lens Resolution: 5MP
IRIS: Manual IR Collection: Yes

2/3" 8mm/12mm F2.4 Megapixel 5MP C Mount Industrial FA Lens, 8mm/12mm 5MP TV Lens



MODEL 230824MP-FA
IMAGE FORMAT 2/3”
Max. Image Circle 8.8mm×6.6mm(φ11mm)
FOCAL LENGTH 8mm
F.O.V. (DxHxV) 2/3”: 69.6°x58.3°x45.4°, 1/1.8”: 59.4°x49.1°x37.6°, 1/2”: 54°x44.2°x33.6°, 1/2.9”: 43.5°x35°x26.9°
RESOLUTION 5MP
APERTURE F2.4~F16
Operation range of Focus 100mm-Inf.
TV DISTORTION -0.64% (WD=300mm)
MOUNT C
IRIS Manual
ZOOM Manual
FOCUS Manual
Object Dimension at M.O.D 353mm×265mm 2/3"
F.B.F. 17.526mm
B.F.L. ≤12.2mm
Working Distance
WEIGHT 102.4g
DIMENSION Φ42mm×50.5mm



MODEL 231224MP-FA
IMAGE FORMAT 2/3”
Max. Image Circle 8.8mm×6.6mm(φ11mm)
FOCAL LENGTH 12mm
F.O.V. (DxHxV) 2/3”: 48.3°x39.6°x30.2°, 1/1.8”: 40.4°x32.8°x24.9°, 1/2”: 36.3°x29.4°x22.2°, 1/2.9”: 28.9°x23.1°x17.7°
RESOLUTION 5MP
APERTURE F2.4~F16
Operation range of Focus 100mm-Inf.
TV DISTORTION -0.1% (WD=300mm)
MOUNT C
IRIS Manual
ZOOM Manual
FOCUS Manual
Object Dimension at M.O.D 300mm×200mm 2/3"
F.B.F. 17.526mm
B.F.L. ≤16.8mm
T.T.L. ≤50.8mm
WEIGHT 71.1g
DIMENSION Φ29mm×40.1mm



Tips:

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
